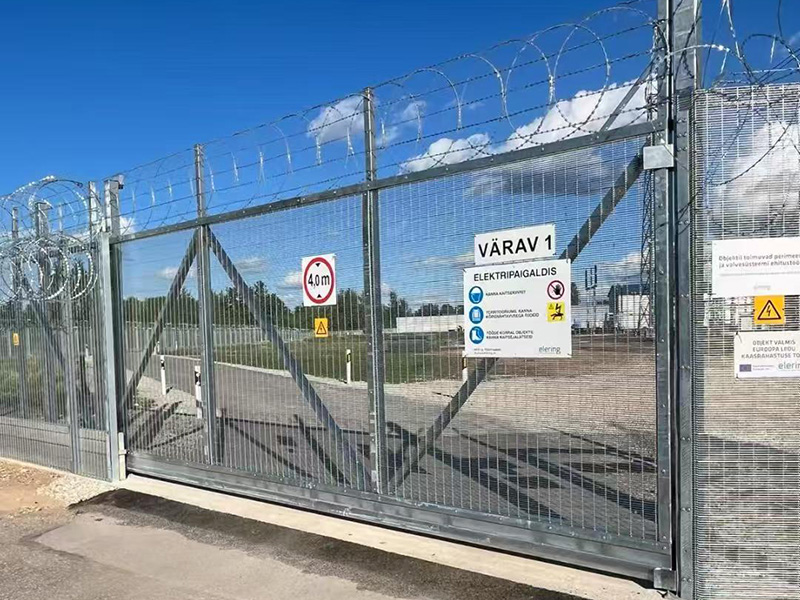

358 Anti‑Climb Fence
Name origin: 3‑inch × 5‑inch mesh opening with 8‑gauge wire. Metric conversion: 76.2 × 12.7 mm, wire diameter 4.0 mm
Core Panel Specifications
‑ Mesh opening: 76.2 mm (length) × 12.7 mm (height). Narrow vertical gaps prevent finger insertion and climbing.
‑ Wire diameter: Standard 4.0 mm (8‑gauge steel wire). Custom options: 3.0 mm, 4.5 mm.
‑ Common panel dimensions:
‑ Width: 2.5 m (mainstream size)
‑ Heights: 1.8 m / 2.0 m / 2.2 m / 2.4 m / 2.8 m / 3.0 m (tall versions for airports and prisons)
‑ Structure: V‑bend available for enhanced panel rigidity.
Common Post Specifications
‑ Standard: 60 × 60 × 2.0 mm square tube
‑ Heavy‑duty security type: 80 × 80 × 2.5 mm, 100 × 100 × 3.0 mm square tube
‑ Post spacing: Matches panel width, generally 2.5 meters.
Surface Finishes
1. Hot‑dip galvanized plus powder coating (preferred for outdoor use, long service life). Colors: grass green, dark green, black, grey.
2. Dip coating is also available.
Accessories
Anti‑theft bolts, anti‑removal clips. Barbed razor wire can be fitted on top for high‑risk sites.
Applications
Airports, substations, detention centers, factory premises, data centers and other high‑security perimeter isolation projects.
